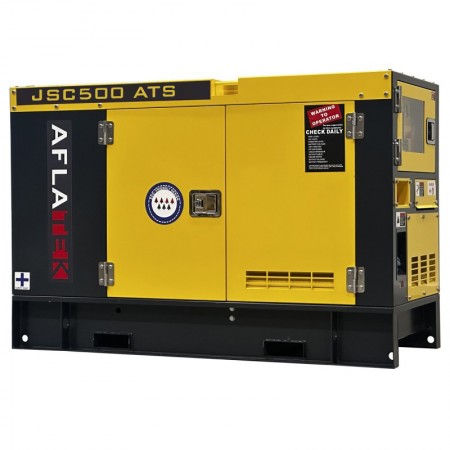

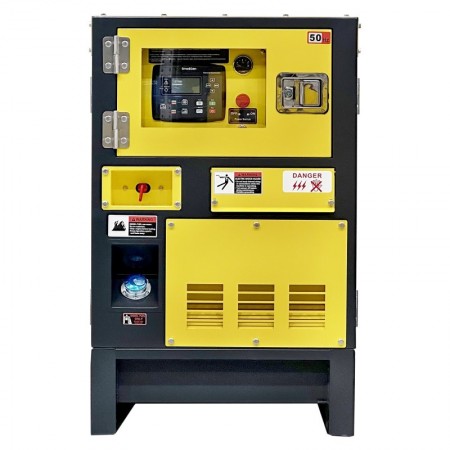

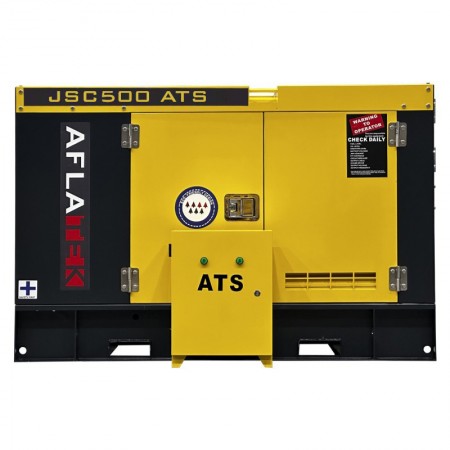

AFLATEK JSC500 Silent Water-Cooled Diesel Generator Set 400kW/500kVA
The AFLATEK JSC500 is a robust, silent diesel generator set designed for reliable prime and standby power at industrial scale, featuring a powerful 400kW engine, Stamford-type alternator, and Smartgen controller for advanced monitoring.
€54,128.14
Tax included
(+371) 25258888
Have questions? Call Us
sales@aflatek.eu
Parameter |
Value |
|---|---|
Model |
JSC500 |
Prime Power (KW/KVA) |
400 / 500 |
Standby Power (KW/KVA) |
440 / 550 |
Engine Model |
SC25G690D2 |
Alternator Model |
JLT544D |
Controller |
HGM9420N |
System Voltage |
24V |
Frequency |
50Hz |
Engine Speed |
1500 RPM |
Fuel Consumption (L/H) |
111 (Prime), 122 (Standby) |
Fuel Tank |
900L |
Price (FOB Riga) |
€44,734 |
Silent Dimensions (LxWxH) |
5300mm x 2100mm x 2200mm |
Open Dimensions (LxWxH) |
3700mm x 1500mm x 2000mm |
Net Weight |
Silent 5710kg, Open 4510kg |
Compression Ratio |
16:01 |
Aspiration |
Turbocharged and Aftercooled |
Bore |
135mm |
Displacement |
25.8L |
Stroke |
150mm |
No. of Cylinders |
12 |
Oil Capacity |
65L |
Max Standby Power |
505kW/687Hp (1500rpm) |
Coolant Capacity |
152L |
Fuel System |
Direct Injection |
Alternator Specifications
Parameter |
Value |
|---|---|
Model |
JLT544D |
Number of Phase |
3 |
Connecting Type |
3 Phase, 6 Wires (“Y” type) |
Number of Bearing |
1 |
Power Factor |
0.8 |
Protection Grade |
IP21 |
Altitude |
≤1000m |
Exciter Type |
Brushless, self-exciting |
Insulation Class |
H/H |
Capacity |
400KW/450kVA |
Efficiency |
88.8% |
Generating Set Data
- Voltage Regulation: ≥±5%, Steady State ≤±1%
- Sudden Voltage Warp (100% Sudden Reduce): ≤+25%, (Sudden Increase): ≤-20%
- Voltage Stable Time: ≤6S
- Frequency Regulation: Steady State ≤5%, Waving ≤1.5%
- Sudden Frequency Warp: ≤+12% (100% reduce), ≤-10% (increase)
- Frequency Recovery Time: ≤5S
Standard Features
- Smartgen HGM9420 Controller
- Special tool for SDEC Engine
- ISO 8528:2005 certificate
- MCCB
- Oil Drain Valve
- Set of fuel filter / oil filter / belt
- Starting batteries
- Exhaust System (with muffler)
- Battery switch
- Documents
- Coolant Preheater
- Larger Fuel Tank
Options
- Oil Preheater
- Controller for Deepsea, comAp, Datakom etc.
- Winding Temperature measuring instrument
- Alternator Preheater
- PMG
- Automatic fuel feeding system
- Trailer

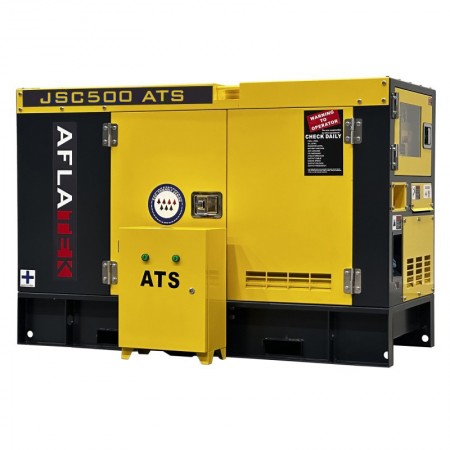

- ATS
- Parallel function

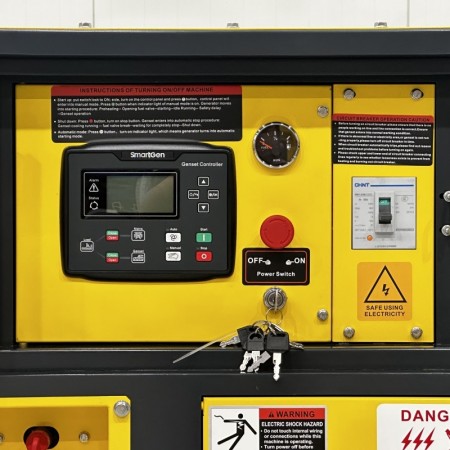

Multiply Function Control Panel
Smartgen HGM9420 diesel engine controller has expansion: Ethernet+Synchronization changeover+USB+RS485+SMS+AMF port that connects to remote control module or expansion digital output module, LED indicator expansion module, and security module.
JSC500
