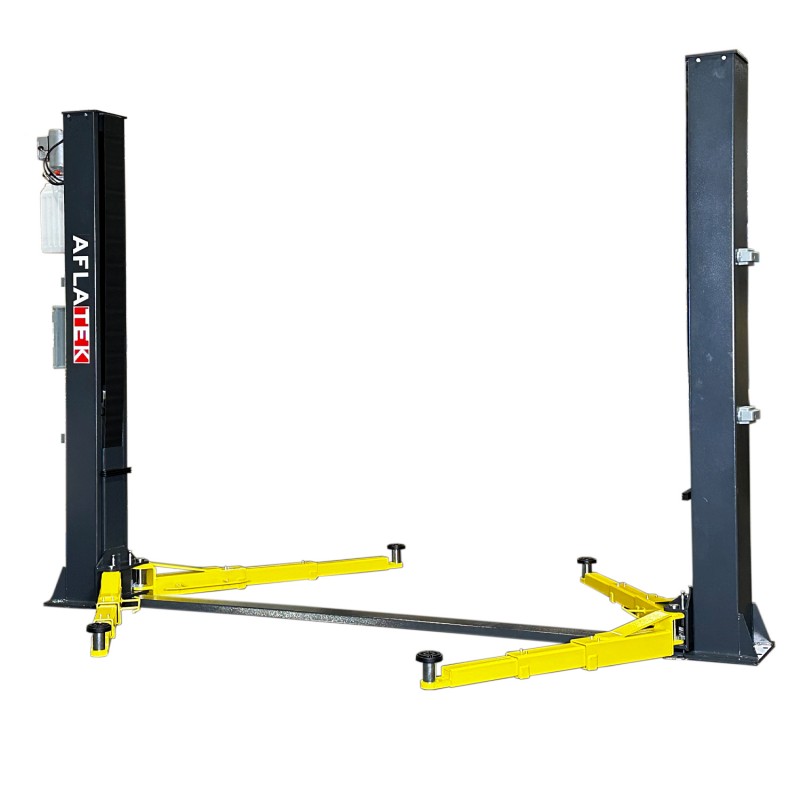

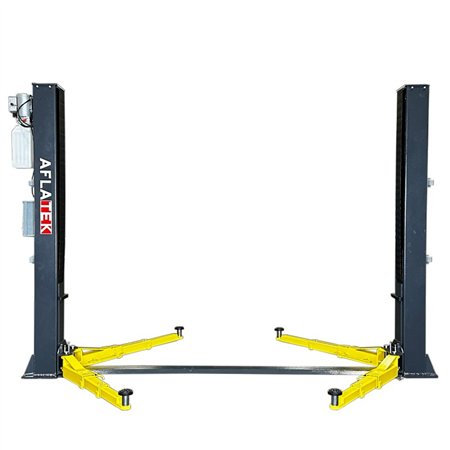

AFLATEK 5000FE Automatic Big Size 2-Post Lift 5000kg 400V
The AFLATEK 5000FE is a heavy-duty, 5.0-tonne automatic two-post vehicle lift designed for buses, trucks, and large commercial vehicles. Operating on a 400V 3-phase power supply, it features a floor plate design, electric unlock with magnetic solenoid safety catches, and a generous lifting height of 1900mm. With a robust 3300mm width between posts, it ensures safe and reliable lifting for professional automotive workshops.
€2,492.60
Tax included
(+371) 25258888
Have questions? Call Us
sales@aflatek.eu
AFLATEK 5000FE Automatic Big Size 2-Post Lift 5.0T 400V
The AFLATEK 5000FE is a professional-grade, automatic two-post lift specifically engineered for heavy-duty applications, including buses, trucks, and large commercial vehicles. Featuring a robust floor plate design and an impressive 5000kg lifting capacity, this 400V system ensures maximum stability and reliability in demanding automotive workshops. The lift utilises an electric unlock system with magnetic solenoid safety catches, guaranteeing safe operation during every lift. With a generous 3300mm width between posts and a maximum lifting height of 1900mm, it provides ample clearance and exceptional ease of use for mechanics working on oversized vehicles.
Technical Specifications
| Lifting Capacity | 5000 kg |
| Power Supply | 400V, 3Ph |
| Motor Power | 2.2 kW |
| Lifting Height | 1900 mm |
| Minimum Height | 110 mm |
| Overall Height | 2880 mm |
| Width Between Posts | 3300 mm |
| Overall Width | 3930 mm |
| Lifting Time | 55 seconds |
| Descent Time | 30 seconds |
| Safety Catch Type | Magnetic Solenoid |
| Lift Type | Floor Plate / Electric Unlock |
| Noise Level | ≤70 dB |
| Hydraulic Oil Volume | 10 litres |
| Packing Dimensions | 2900 x 520 x 1000 mm |
| Gross / Net Weight | 845 kg / 830 kg |
